SAST scanning with Semgrep

Static Application Security Testing (SAST) in Deckhouse Code looks for vulnerabilities in the source code of a project. The scanner behind it is Semgrep, and the scan is called sast.

The scan is mandated: it is added to a project’s pipeline by a scan execution policy that lives in a separate security policy project, not by the project’s own .gitlab-ci.yml. The policy — that is, the security team — decides what is scanned and what fails the pipeline, and the scanned project cannot override it from its own CI/CD settings.

What the scan does

The sast scan adds two jobs to the pipeline, both in the fe-security-scanner stage:

Both jobs upload their artifacts with when: always, so a blocked pipeline still carries the findings that blocked it.

Findings reach the same places as those of every other policy scanner:

Prerequisites

Before the scan can run, make sure that:

• an instance administrator has enabled the fe_security_scan_policies feature flag;
• a security policy project is linked to the project or to a group above it;
• a GitLab Runner with a docker executor is available, and it can pull both images the scan uses: the scanner image (see “Where the scanner image comes from” below) and the Ruby image the second job runs on, ruby:3.3.10-slim by default, which an installation can redirect with the instance variable FE_SCANS_REPORT_CONVERTER_IMAGE.

Turning the scan on

Add a sast action to .gitlab/security-policies/policy.yml in the security policy project:

scan_execution_policy:
  - name: SAST everywhere
    enabled: true
    rules:
      - type: pipeline
        branches: ["*"]
    actions:
      - scan: sast

Then link the policy project to the target project or group in “Settings” → “Security policy”. Every pipeline the rules match then gains the two jobs above.

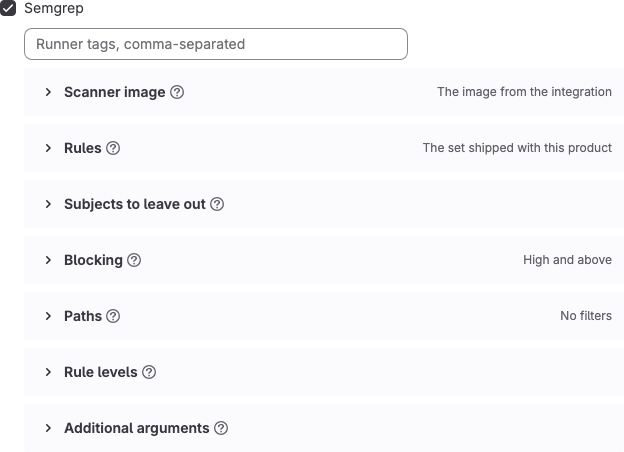

The scan options can also be edited in the policy editor, which renders the form described below.

What the policy sets

The form for the sast action is built from the groups “Scanner image”, “Rules”, “Subjects to leave out”, “Blocking”, “Paths”, “Rule levels” and “Additional arguments”. Every option belongs to the policy: the server writes the values into the job while the pipeline is rendered, so the scanned project’s own CI/CD variables cannot change them.

Each group opens and closes on its own title, and all of them start closed. A closed group carries a statement of its own: the policy writes nothing into it, so that part of the scan keeps the answer the server gives without it — for the scanner image, the one the Semgrep integration names where it names one, and the value shipped with this product everywhere else. Open a group and fill in a field, and the policy takes that decision over for every project it covers. Save the policy and open it again, and the groups it holds something in come back open, so a saved policy always shows everything it sets.

A group is named after the choice it is built around, and that choice is drawn without its own name repeated inside the group: opening “Scanner image” goes straight to the image sources, “Rules” to the rule sources, “Paths” to the filter sources, “Blocking” to the threshold, “Rule levels” to the three levels. The fields a choice reveals keep their own names underneath it, and the hint ("?") of the leading choice sits beside the group’s title.

What a closed group has settled is stated at the end of its title line. That is what makes the closed form readable: the threshold and the rule source can be read without opening anything.

The lines of “Scanner image”, “Rules”, “Blocking” and “Paths” always carry a value, because their control is a set of radio buttons, which always shows an answer: the policy’s, or the one the server would give while the policy has said nothing. The line and the control therefore agree. “Rule levels” holds a set of levels, and while the policy has set none there is nothing to name — the three boxes come up ticked instead, which is the same state.

No group here carries a checkbox beside its title. Where another scanner’s group carries one, that group is a module that can be switched off; these groups are the scan itself. Removing the sast action from the policy is what turns the scan off. The checkboxes inside “Subjects to leave out” and “Paths” each carry one setting of their own.

A field that answers to one choice is drawn under that choice and nowhere else. Picking “A file in the security policy project” as the rule source puts the rule file path beneath that option; picking another source takes the field away.

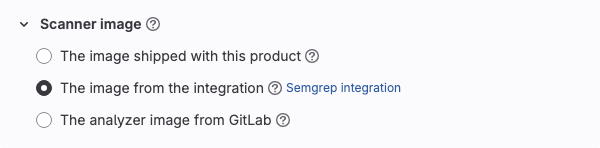

Scanner image

This group sets which image the scan runs in. It opens on “Image source”, a choice of three:

The image tag and the semgrep version are two different numberings: a larger image tag has meant an older semgrep. The hint on “Image version” names the semgrep version that ships with this product and the image tag carrying it, and the field’s list of suggestions names the same for every tag this release knows of. The hint beside the group’s title states which image this installation will run: the prepared image the integration names, the registry it mirrors the scanner in, or the image the installation itself is set to use.

Beside “The image from the integration” stands a link to the Semgrep integration page, in every state of the choice, for a policy owned by a group. A policy owned by a project is settled by the group above it, whose settings the project’s maintainer may not be able to open, so that choice carries no link there.

“The image from the integration” is the one source that can be unavailable, and there is a single reason for it: the integration names no image for the scan to pull, either because no Semgrep integration is set up for the group, or because one is set up and names neither a registry nor a prepared image. The choice then stays in the list, greyed out, with the reason written on the choice itself. The other two sources are always available.

A policy that names no source shows the answer the server would give without it: “The image from the integration” where the integration names an image, and “The image shipped with this product” everywhere else — see “Where the scanner image comes from”.

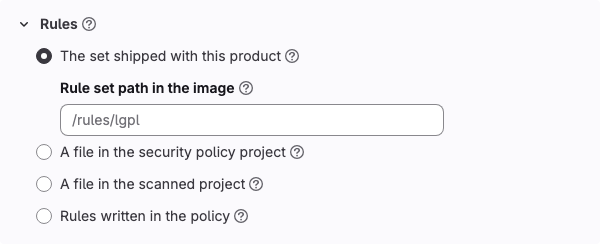

Rules

This group sets which rules the scan runs.

Every field carries a hint behind the “?” beside its name; the hint of “Rule set”, which the group is named after, sits beside the group’s title.

The rule sources differ in who owns the file:

The server reads “The set shipped with this product”, “A file in the security policy project” and “Rules written in the policy”, and writes them into the job. “A file in the scanned project” is read by the job itself, from its own checkout, at the commit being built. That is also the one source the scanned side writes: a commit that rewrites that file rewrites the rules of the scan that checks it. Leaving “Replace the shipped set” unticked keeps a baseline in place even when the project’s file is emptied.

A rule file the policy named but the scan could not be given stops the job: it prints why and fails, and the shipped set does not step in for the missing file.

Subjects to leave out

This group sets which subjects of the shipped set the scan leaves out.

The boxes appear while the rules come from the shipped set, because rules of your own carry no subject to leave out. A ticked box leaves the subject out; an empty one runs it, which is what a policy written before these fields existed goes on doing. The group’s hint states what the choice is for: where another mandated scan already covers one of these subjects, both report it, and the same line is a finding twice.

What each subject holds, and the rule set an exclusion needs, are in “Subjects inside the shipped set”.

Blocking

This group sets what a finding does to the pipeline.

Threshold values:

Semgrep reports at ERROR, WARNING and INFO, which the scan shows as high, medium and info. Semgrep has no critical and no low, so a threshold named after either would be one no finding could reach: “critical” would block nothing while looking strict, and “low” would repeat “medium”. “Report only, block nothing” puts the decision to block nothing into the policy as a value of its own.

Paths

This group sets what the scan looks at, and what it leaves out.

Whichever source the filters come from, the job applies its own built-in exclusions — node_modules/, vendor/, dist/, build/, .venv/ and .git/ — on top of whatever the policy set, so dependency trees stay out of the scan even where the policy’s own filters say nothing about them.

Filters take their source the same way rules do:

By default the job sets aside any .semgrepignore it finds in the scanned repository — including nested ones in subdirectories — before the scan starts. Picking “A file in the scanned project” is what turns that off:

About the two lists:

• “Look only at these paths” is stronger than “Skip these paths”. An exclusion removes what it names; an inclusion removes everything else. A single src/** quietly takes lib, config and your migrations out of the scan.
• They are applied in that order — inclusions first, then exclusions — so an exclusion still applies inside what an inclusion let through.

A pattern that matches nothing passes the form’s validation. The job catches it: it prints how many files the scanner read, and fails when that number is zero.

Rule levels

This group sets which levels of rule run at all.

A level is exactly the rules the scanner marks with it: “High” the ERROR rules, “Medium” the WARNING rules, “Info” the INFO rules — and a finding is reported at the level of the rule that found it. Unticking a level takes exactly that level’s rules out of the run.

The last level left ticked cannot be unticked. An emptied list is removed from the policy, and a policy that names no levels is the state that runs every level.

“Rule levels” and “Blocking threshold” look alike and do different things:

A threshold covers its own level and every level above it, which is what “and above” says; a rule level covers the rules the scanner marks with that level and no others.

Leaving a level out therefore removes its findings from the report as well as from blocking: the vulnerability report and DefectDojo both get smaller, and the job log says nothing about it. A threshold that no ticked level can reach never fires; the form says so when that happens.

Additional arguments

This group sets the flags the rest of the form does not name.

“Additional arguments” tunes the resources of the run: timeouts, memory limits, maximum file size. Flags that redirect or silence the report are refused, as are the flags this form already owns: output and report formats (--json, --sarif, --junit-xml, --gitlab-sast, --gitlab-secrets, --output, --text and their paired *-output forms), --config, --metrics and --baseline-commit.

The hint on this field also states where the scan’s findings end up: they are published as a security report, so they reach the vulnerability report and whatever the administrator has connected to it.

Rule sets in the image

By default the scan runs the rule set carried inside the scanner image, at /rules/lgpl. The image carries more than one set, and “Rule set path in the image” chooses between them:

A rule may name several languages, so the per-language figures add up to more than the rule count. The /rules row is the whole directory: pointing the scan at it loads every set below it and the files beside them.

These figures were measured in registry.gitlab.com/security-products/semgrep:6.25.0 and describe that image; a newer image may carry a different set. Each directory in the image carries its own license file, and “Rule set path in the image” is where you name the one to run.

Rules of your own are added through the “Rule set” field and, with “Replace the shipped set” left unticked, run alongside whichever set the image provides.

Subjects inside the shipped set

The rules in the set are marked by subject: what a rule judges. Measured on a rule set of 2826 rules:

A newer image may carry a different set. Configuration, secrets and malicious code are the subjects the policy can leave out, in the “Subjects to leave out” group; the code rules run in every scan.

An exclusion needs a rule set that carries an index of its subjects. The set published in GitLab’s own image carries none, so a ticked box there stops the job, naming the subjects it was asked to leave out and the rule set that has no index to leave them out by — see “Troubleshooting”. Rules written in the policy carry no subjects either, which is why the boxes are hidden while they are the source.

Where the scanner image comes from

The image the scan runs in is resolved by the server once, before the job starts, and written into the job as a literal value. It never becomes a CI/CD variable, so the scanned project’s own settings cannot point the scan at a different scanner.

Which image that is follows from the source the policy names in its “Scanner image” group:

A prepared image on the integration answers for one source and no other: the administrator who named it named what “The image from the integration” pulls, including its version, so a version set in the policy does not apply to it. A policy asking for the shipped image, or for GitLab’s analyzer image, gets the image it asked for.

A policy that names no source at all was written before this field existed, and it keeps the answer it has always had: the image the integration names, then the image the instance was set to, then the one the release ships. A version such a policy carries still applies, unless the integration names a prepared image.

The scanned project’s own integration record is ignored: the image comes from the side that mandates the scan.

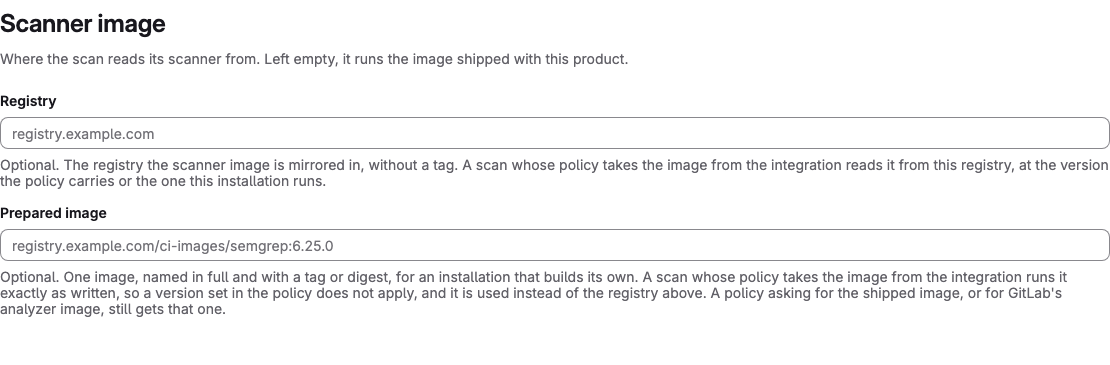

The Semgrep integration

The integration holds where the scanner image is read from. It is set on a group, so an installation names the registry once for every policy below it; on a project the integration shows no fields, which is how a reader learns the scan is configured above it.

Open “Settings” → “Integrations” → “Semgrep” on the group and fill in either field — both are optional:

With both fields empty the integration names no image, so “The image from the integration” cannot be picked in a policy and the scan runs the image shipped with this product. What the scan looks for is set in the policy.

The version shipped with this product

This release ships registry.gitlab.com/security-products/semgrep:6.25.0, pinned to that exact version. One tag pins both halves of the scanner at once — the engine and the rule sets carried inside the image — because both live in the same image.

The “Image version” field in the policy takes either form of pin:

• a version number, such as 6.25.0, which a person can read and compare;
• a digest, such as sha256:aafbcaff…, which names one build and cannot be moved to another.

Floating tags (latest, stable, a tag that is a major number on its own, such as 6) and references that carry a registry address are refused: the registry is the integration’s to name, and the policy names only the version.

The version shipped with a release is reviewed when Deckhouse Code is updated, so it moves forward with the product.

Installations with no route to the internet

An installation with no route to the internet provides both images the scan uses:

Copy both images into your own registry, as GitLab’s own offline documentation prescribes for its analyzer images, then point the corresponding setting at that registry. Deckhouse Code names both images and pulls them from outside.

Semgrep’s paid features

Everything described on this page runs on the open version of the scanner. Semgrep capabilities that lie outside it:

The mandated scan keeps everything inside the job. It runs semgrep scan with --metrics=off and --disable-version-check, so findings and usage telemetry stay where the job put them. Before the scanner is even located, the job clears every SEMGREP_* and PYTHON* variable it inherited: SEMGREP_RULES and SEMGREP_BASELINE_COMMIT among them are documented equivalents of --config and --baseline-commit, and left in place they would let the scanned project’s CI/CD settings replace the rule set or the comparison base of the scan that checks it.

Troubleshooting

The scan does not appear in the pipeline

Check that:

• the fe_security_scan_policies feature flag is enabled on the instance;
• the security policy project is linked to the project, and policy.yml contains a - scan: sast action;
• the policy’s rules match the pipeline (branch, pipeline type);
• a GitLab Runner with a docker executor is available.

The job fails with “no rule set at … in this image”

The path in “Rule set path in the image” does not exist in the image the scan resolved. Check the path against the table above, and check which image is actually in use: with “The image from the integration” picked, a “Prepared image” set on the integration may carry a different layout.

The job fails with “carries no class index to switch them off by”

A box in “Subjects to leave out” is ticked, and the rule set the scan resolved carries no index of its subjects — the set published in GitLab’s own image carries none. Untick the boxes, or point the scan at a rule set that carries the index. The job prints the subjects it was asked to leave out and the rule set it read.

The neighbouring message, that the index holds no rule in any of the named subjects, is answered the same way.

The job fails with “semgrep read no files at all”

The scan examined nothing, so it refuses to report success. The usual causes are a “Look only at these paths” pattern that matches nothing, filters that removed the whole repository, or a checkout with nothing in it. The job’s log prints how many files it read and how many the filters removed.

The scan succeeds but finds nothing

Most often the rule set does not cover the language of the repository — see the warning in “Rule sets in the image”. Check the job log: it prints the rule set path in use and the number of rules loaded. Narrowing “Rule levels” has the same effect for a different reason: a level the policy unticked never runs, so its findings are absent from the report entirely.
